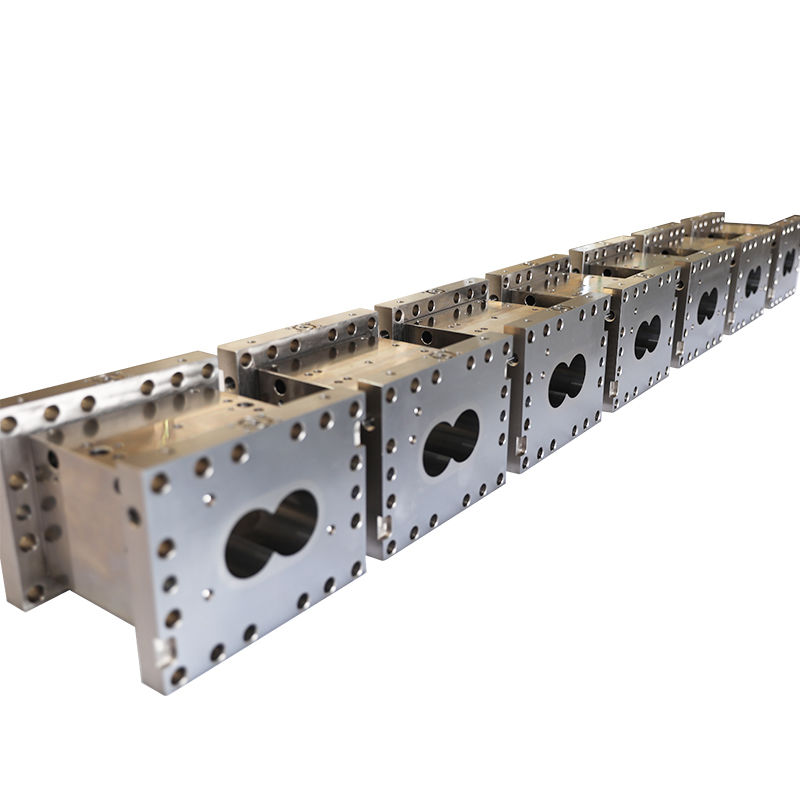

Parallel Twin Screw Plastic Extruder Screw Elements and Barrel
Product Specifications
| Attribute |
Value |
| Material |
EPDM, Hipx260, Cr12MOV, Wr13, W6mo5cr4V2, Wr30 |
| Weight |
50 kg |
| Spare Parts Type |
Barrel |
| Quality Assurance |
Video Outgoing-Inspection Provided, Machinery Test Report Provided |
| Screw Design |
Twin Screw |
| Application Machine |
Twin Screw Extruder |
| Range |
16.5 to 400mm |
| After-Sales Service |
Engineers Available to Service Machinery Overseas |
| Applicable Industries |
Manufacturing Plant, Food & Beverage Factory |
Product Overview
Color: Metal
Standard: GB ISO 9001
Model: Type 20/30/35/36/40/50/52/53/58/60/65/75/85/92/95/110/125/135
Brand: Zhitian
Quality: High wear-resistance and corrosion-resistance
Used: For twin screw extruder
Efficient and stable, widely used in industries: The twin-screw extruder barrels produced by Zhitian are widely used in plastics, rubber, chemicals, food, new energy and other industries. Countless extruders on the market use our accessories.
Advanced Building Block Design
The main screw and barrel of the split twin-screw extruder adopt an advanced "building block" design. The screw is composed of various screw blocks installed on the mandrel and barrel lining, forming a sleeve that can be adjusted according to different screw blocks.
This design allows the screw component structure to be flexibly combined according to the process requirements of the material variety to achieve material transportation, refinement, shearing, and discharge. This effectively solves the difficult-to-consider contradiction between the versatility and specificity of the screw, achieving the purpose of one machine with multiple uses.
Reduced Maintenance Costs
Another advantage of the "building block" design is that worn screw and barrel components can be partially replaced, preventing the entire screw or barrel from being scrapped and greatly reducing maintenance costs. This means you save time and money without having to replace the entire unit or buy an entirely new barrel.
Material Specifications
| Type of Barrels |
Materials |
| Solid Barrel |
Hastelloy-C Alloy, 38CrMoAla, 304/316/316L Stainless Steel |
| Direct Compound Barrel |
ZT610 Ni60 Based+Cu, ZT615 Ni60 Based, ZT625 Ni60 Based+Tungsten carbide, HIP Cobalt Based+Tungsten carbide |
| Complete Liner Barrel |
38CrMoAla Liner, 440C Stainless Steel Liner, Cr12MoV Liner, SKD11/SKD61 Liner, DC53 Liner, W6Mo5Cr4V2 Liner, ZTCr26 Liner, SAM26/WR13 Liner, CPM10V/WR5 Liner, ZT610 Ni60 Based Liner+Cu, ZT615 Ni60 Based Liner, ZT625 Ni60 Based Liner+Tungsten carbide, HIP Cobalt Based Liner+Tungsten carbide |
| Compound Alloy Liner Barrel |
S45C+ZT610 Ni60 Based Liner+Cu, S45C+ZT615 Ni60 Based Liner, S45C+ZT625 Ni60 Based Liner+Tungsten carbide, S45C+HIP Cobalt Based Liner+Tungsten carbide |
Product Gallery
Why Choose Zhitian's Extruder Barrel?
We have extensive experience in twin-screw extruder screw barrels. Through continuous practice, we have developed a variety of new screw barrels, which, with different screw designs, greatly increase output and enhance service life. We also provide OEM services for well-known extruder complete machine manufacturers in the world.
Our Advantages
- Long service life
- Material: Choose materials with high wear resistance, corrosion resistance or both according to customer needs
- Professional technical team provides timely sample measurement, design, and component combination services
- Complete modern management system ensures 100% qualified products with traceable quality
- Wide range of applications: Universal for processing various materials
Company Profile
NANJING ZHITIAN is specialized in the manufacturing of replacement parts for twin screw extruder with more than 20 years experience. We manufacture gearboxes, barrels and screw elements of twin screw extruders and provide refurbishment services.
Our company features strong technical force, excellent processing equipment, advanced production technology, strict inspection system and perfect after-sales service. Our products have mature applications in major global well-known brands.
Global Excellence
As a leading manufacturer of key components such as twin screw extruder gearboxes, barrels, screw elements, and core shafts on a global scale, our company has earned the trust of customers worldwide through exceptional quality and professional service.
Our products find extensive applications globally, ranging from the processing of high-molecular materials like plastics, rubber, and synthetic fibers to packaging in industries such as food, pharmaceuticals, and even emerging fields like lithium battery slurry coating for new energy sources.
Frequently Asked Questions
Q1: What products and services does your company primarily offer?
A: Our company is a leading global manufacturer of key components for twin-screw extruders, mainly providing critical components such as twin-screw extruder gearboxes, barrels, screw elements, and core shafts.
Q2: What are the features of your twin-screw extruder gearboxes?
A: Our twin-screw extruder gearboxes are characterized by high efficiency, stability, and durability, providing powerful propulsion for our customers.
Q3: In which industries are your products widely used?
A: Our products find extensive applications in industries such as processing high-molecular materials like plastics, rubber, and synthetic fibers, as well as in packaging for food, pharmaceuticals, and emerging fields like lithium battery slurry coating in new energy sources.
Q4: How can we obtain customized solutions?
A: We provide personalized product designs and professional technical support for our customers. Contact our customer service team for detailed customization options.
Q5: How can we establish a partnership with your company?
A: We welcome the establishment of long-term and stable partnerships with customers worldwide. Contact our customer service team for more information.
Q6: What is your company's guarantee for product quality?
A: We are committed to delivering high-quality products and ensure compliance with the highest standards through rigorous quality control processes.
